AAAC GREELEY
| ITEM | DESCRIPTION | UNIT | OFFERED |
| 1 | Maker/Country of origin | China | |
| 2 | Standard | ASTM B398 | |
| ASTM B399 | |||
| 3 | Type of conductor | AAAC Greeley | |
| 4 | Code name | Greeley | |

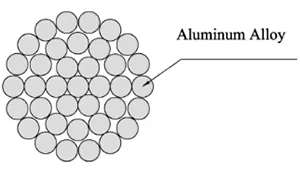

| 5 | Structure diagram |  |
|
| 6 | Nominal cross-sectional area | mm² | 469.8 |
| 7 | Stranding and diameter of wire | No/ mm | Al-37/4.02 |
| 8 | Overall diameter | mm | 28.14 |
| 9 | Unit weight of conductor (without Grease) | kg/km | 1289 |
| 10 | Rated Strength | kN | 135.54 |
| 11 | DC Resistance at 20℃ | ohm/km | 0.0713 |
| Conductivity | %IACS | 52.5 | |
| 12 | Aluminum Alloy Minimum tensile strength(Average) | MPa | 315 |
| Aluminum Alloy Minimum tensile strength(Individual) | MPa | 305 | |
| 13 | Assumed equivalent modulus of elasticity of conductor | MPa | 55000 |
| 14 | Assumed equivalent coefficient of linear expansion of conductor | per °C | 23*10-6 |
| 15 | The outer lay stranding direction of conductor | Right hand | |
| technology parameter table of Ф4.02Aluminum Alloy single wire | |||
| 16 | The appearance and surface quality | Stranded wire surface with no visible defects, without any defects that do not match the requirements | |
| 17 | Overall diameter | mm | 4.02 |
| 18 | Allowable deviation of the diameter | mm | 0.04 |
| mm | 0.04 | ||
| 19 | Tensile Strength | MPa | 315 |
| MPa | 299 | ||
| 20 | Dc resistivity of 20 ℃ | nΩ·m | ≤32.841 |
| 21 | Calculated cross-sectional area | mm² | 12.69 |
| 22 | Mass per unit length | kg/km | 34.14 |
