SERVO MOTOR FEEDBACK CABLE
Products Categories
Get A Free Quote
Data Sheet
Servo-motors Cable
Type: TS-Flex-MVS
| Technique Data | |||||||||
| Rated Voltag | Max. conductor
Temperatur |
Min. Temperature
of installation |
Max. Temperature
of short circuit
|
Min. internal
bending radius |
|||||
| 0.6/1KV | 80℃ | -20℃ | 160℃ | 5D | |||||

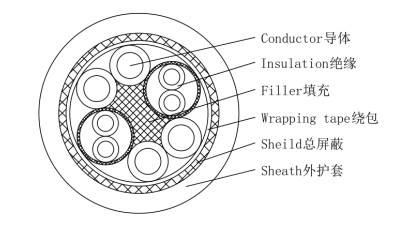

| Structural Characteristics | |||||||||
| Conductor | Bare copper wire | ||||||||
| Insulation | 1mm²:PVC insulation PVC
0.75mm²:TPEE insulation |
||||||||
| Shield | Tinned copper wire braided shield | ||||||||
| Sheath | PVC jacket | ||||||||
| Core identif. | 1mm²:black with white number1,2,3 and Y/G
0.75mm²: black with white number5,6,7,8 |
||||||||
| Weather resistance | Indoors, resistant to ozone and moisture | ||||||||
| Application | |||||||||
| Servo motor cable is the combination of power line and control line in braking function and thermal protection system. This cable has total shielding to ensure emc compatibility, such as electromagnetic interference protection. It is widely used in automation, drive, control and production engineering. | |||||||||
| Structural dimensions and other parameters | |||||||||
| Number and nominal cross-sectional area of counductors
(No.×mm²) |
Mean
overall diameter (mm) |
Indicative
of Cable weight (kg/km) |
Conductor | Insulation | Sheath | ||||
| Max. resistance (ohm/Km at 20 °C) | Thickness
(mm) |
Thickness
(mm) |
|||||||
| 4G1+2×2×0.75 | 12.3±0.6 | 215 | 19.5/26.0 | 0.4/0.3 | 1.1 | ||||
Application
Servo motor cable is the combination of power line and control line in braking function and thermal protection system. This cable has total shielding to ensure emc compatibility, such as electromagnetic interference protection. It is widely used in automation, drive, control and production engineering.
