Data Sheet

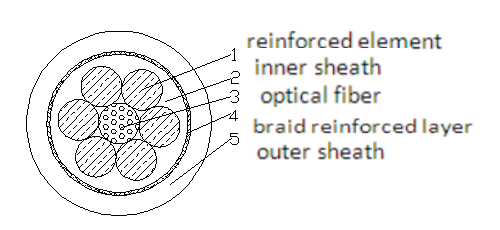

Structure:
Specification:
| Type | Construction | Approx.
overall diameter mm |
Approx.. weight
kg/km |
| Eketten-flex-O | 12G62.5/125 | 14.0 | 380 |
Performance:
- The cables permissible Long-term working ambient temperature is 60℃,it can work under the lowest temperature -25℃ outer door.Minimum bending radius is 15D of the diameter of the cable,and is high abrasion resistance,ozone resistance,oil resistance,ultraviolet radiation and moist characteristics.(D =cable diameter)
- Attenuation:Max. at wavelength 850nm is 3.5db/km,Max. at wavelength 1300nm is 1.5db/km.
- Bandwidth: Min. at 850nm is 200MHz,Min. at 1300nm is 200MHz.
- Outer sheath material is PUR mixture,color is black.
- Optical fiber use color to identify.
Application
Suitable for port equipment and the transmission of interference-free data and signals.
