The permissible continuing temperature is 90℃,the cables could work under the lowest temperature -30℃ outer door and resistant to oil,ozone,UV and humidity.
The rated voltage U₀/U of the cables are 6/10kV.

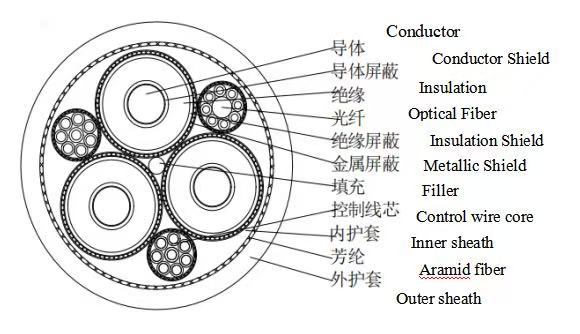

The conductor is tinned copper wire,the insulation material is EPR rubber compound,the sheath material is CR compound.
The power cores insulation color is white,sheath color is red.
Test AC voltage:17kV,5min.
Flame retardation：Conform to IEC60332-1-2（single，vertical test）
The control core unit is shielded by tinnel copper wire.

Specification:

Cross section

(mm²)

Conductor diameter

(mm)

Max.overall diameter

(mm)

Approx

weight

(kg/km)

Max. permissible

tensile force

(N)

Min.Bendradius

3×35+3×25/3+

2×(12×2.5)C+12LWL

8.2/2.0

61.0

5320

2100

12D

Application

The cables are suitable for movable facilities such as movable cranes for container, lifts, movable bigger facilities, grab dredgers and the sites of machinery stress caused by mining on the ground/well bottoms.
