Aluminum-Clad Steel Wire(7No.6AWG)
Products Categories
Get A Free Quote
Sheet1 7 No.6AWG technology parameter table of aluminum clad steel wire
| Item | Unit | Value | ||
| Type | 7 No.6AWG | |||
| Standard | ASTM B416 ASTM B415 | |||
| The appearance and surface quality | Stranded wire surface with no visible defects, such as obvious indentation, scratch, etc., without any defects that do not match the requirements | |||

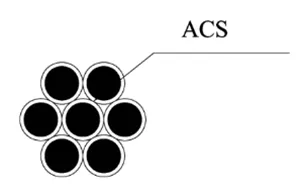

| Structure diagram |  |
|||
| Structure | ACS | Number/Overall diameter（mm） | 7/4.11 | |
| Calculated cross-sectional area | ACS | mm² | 93.1 | |
| Overall diameter | mm | 12.33 | ||
| Mass per unit length（without grease） | kg/km | 619 | ||
| Dc resistance of 20 ℃ | Ω/km | ≤0.922 | ||
| RTS | kN | ≥101.14 | ||
| Modulus of elasticity | MPa | 158620 | ||
| linear expansion coefficient | 1/℃ | 13×10-6 | ||
| Lay ratio | ACS | 6 | 10~16 | |
| 12 | Ght | / | ||
| Lay direction | Outer lay | Left | ||
| Wire length deviation | ﹢ | ％ | 0.5 | |
| ﹣ | ％ | 0 | ||
