ALUMINUM TUBE
OPGW (Optical Fiber Composite Overhead Ground Wire) is a composite cable that integrates communication optical fibers into the overhead ground wire of power lines.
Products Categories
Get A Free Quote
Advantages
- Dual functions: It simultaneously provides lightning protection for power lines and high-speed communication transmission.
- High reliability: Set up with power transmission towers, the path is safe and reliable, and has strong disaster resistance. The armored structure protects the optical fiber from external force damage and environmental erosion.
- Economical and efficient: It is erected on the same tower as the power line, saving the separate routing license and construction cost of the communication line. Resource sharing and low overall cost.
Data Sheet
Cable Type: OPGW ( L- AL_Tube ) – 1S 36 ( M111 / R107 – 68 )

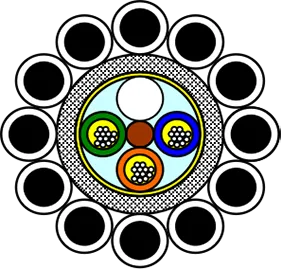

Cross Section:
| Design： | |||
| Name | No | Material Dia. | |
| Cable core | FRP wire | 1 | 6.9mm |
| Loose tube(PBT) / Filler | 3 / 1 | ||
| Aluminium Tube | diameter | 9mm | |
| Layer1 | 20.3%ASwire | 12 | 3mm |
| AA(LHA2)wire | 0 | ||
Fiber type: 36xG.652D
| Tube Color | Blue,Orange,Green |
| Tubes / Fibers | 3 / 12 |
| Color coding of fiber | Blue,Orange,Green,Brown,Grey,White,Red,Black,Yellow,Purple,Pink,Aqua |
| Stranded: | Core and layer greased, stranding direction of outer layer is “left” hand(S-stranding) |
| Cable Diameter | 15mm |
| Cable Weight | 650kg/km |
| Technical Data: | according to: IEC standards | ||
| Supporting Cross Section | 111.05 | mm² | |
| Section of AS Wire | 84.82 | mm² | |
| Section of AA Wire / AL-tube | 0.00 / 26.22 | mm² | |
| Rate Tensile Strength (RTS) | 106.8 | kN | |
| Modulus of Elasticity (E-Modulus) | 137.0 | kN/m㎡ | |
| Thermal Elongation Coefficient | 14.0 | 10⁻⁶/℃ | |
| Permissible Maximum Working Stress(MAT) (40%RTS) | 384.5 | N/mm² | |
| Everyday Stress（EDS)( 16%~25%RTS) | 153.8~ 240.3 | N/mm² | |
| Strain Margin Stress (60%RTS) | 576.8 | N/mm² | |
| DC Resistance ( 20 ℃) | 0.530 | Ω/km | |
| Short Circuit Current ( 0.50s, 40℃~200℃) | 11.69 | kA | |
| Short Circuit Current Capacity ( 40℃~200℃)(I²t) | 68.33 | kA²s | |
| Minimum Bending Radius (installation) | 450 | mm | |
| Installation Tensile Strength (≤20%RTS) | ≤21.4 | kN | |
| Temperature | Installation | -10℃ ~ +50 | ℃ |
| Range: | Transportation and Operation | -40℃ ~ +80 | ℃ |
Get Free Quote of ALUMINUM TUBE
Applications
- Power communication dedicated network: Relay protection signals, dispatching telephones, automatic control, data monitoring, etc. for high-voltage/ultra-high-voltage transmission lines.
- Smart grid: Building the backbone network for information transmission in the power system to support smart substations, distribution network automation, and electricity consumption information collection, etc.
