CONTROL CABLE
Flexible cable can be used in dry and humid indoors, but not suitable for outdoor use. It can be used as a measuring and control cable for processing machinery, air conditioning systems and other occasions
Products Categories
Get A Free Quote
Data Sheet
| Flex control cable Type：Flex-CVC | ||||||||||
 |
||||||||||
| Technique Data | ||||||||||
| Rated voltage | Max. conductor | Max. temperature | Min. bending radius | |||||||
| temperature | Min. environment temperature | of short circu | ||||||||
| 300/500V | 80℃ | -20℃ | 160℃ | 5D | ||||||

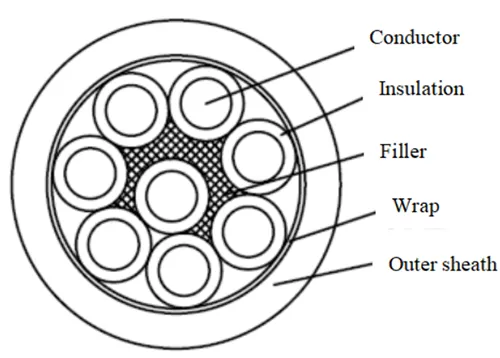

| Structural Characteristics | ||||||||||
| Conductor | Bare copper wire | |||||||||
| Insulation | PVC | |||||||||
| Shield | / | |||||||||
| Outer sheath | PVC | |||||||||
| Core identification | 1,2… Black,print number1,2,3… | |||||||||
| Weather resistance | For indoor use, resistant to ozone and humidity | |||||||||
| Application | ||||||||||
| Flexible cable can be used in dry and humid indoors, but not suitable for outdoor use. It can be used as a measuring and control cable for processing machinery, air conditioning systems and other occasions | ||||||||||
| Structural dimensions and other parameters | ||||||||||
| Number and nominal cross-sectional area | Approx. overall | Approx weight | Max. conductor resistance | Insulation thickness | Outer sheath thickness | |||||
| (No.×mm²) | diameter(mm) | (kg/km) | (Ω/km) | (mm) | (mm) | |||||
| 8×1.5 | 11.8±0.5 | 221 | 13.3 | 0.5 | 1.1 | |||||
Get Free Quote of CONTROL CABLE
Application
Flexible cable can be used in dry and humid indoors, but not suitable for outdoor use. It can be used as a measuring and control cable for processing machinery, air conditioning systems and other occasions.
