TC90(YJLHV)
Aluminum alloy cables adopt AA8000 series conductors, featuring excellent electrical conductivity, being lightweight, durable, economical and environmentally friendly. They are suitable for construction, power and new energy projects, etc.
Advantages
- Compared with pure aluminum core cables, it has better creep resistance, is safer and more reliable, and has a lighter weight. It is easier to install and lay than copper core cables, and has lower labor costs.
- The interlocking armored structure does not require pipe protection, is fireproof and resistant to rodent bites, and is easier to install. It is resistant to salt spray and acid mist corrosion and has a longer service life than copper core cables. It has a low recycling value and natural anti-theft features.
Products Categories
Get A Free Quote
Product Introduction
The conductive wire is made by drawing and annealing the high-quality AA8030 aluminum alloy rods. It has a three-color strip (or tape) core with cross-linked polyethylene (XLPE) insulation, and a polyvinyl chloride (PVC) sheath.
- This product is suitable for laying in indoor cable trays, supports, conduits or cable trenches, direct burial in pipelines, etc. The conductor is allowed to operate at a maximum temperature of 90℃ for a long time, and a maximum temperature of 250℃ for a short period (< 5 seconds). The ambient temperature during laying should be no lower than -15℃, and the operating environment temperature should be no lower than -25℃. The minimum allowable bending radius is 7 times the outer diameter of the cable.
- The cable sheaths can be selected as flame-retardant C grade, B grade or A grade according to the requirements. For those cables that are exposed directly in sunlight, the sheaths should be chosen as those resistant to light-induced aging and UV protection.
- The insulation color of single-core cables is black. For 2-core cables, the insulation colors are red and blue. For cables with 3 cores or more, the insulation colors for phase wires are yellow, green and red. The insulation color for the neutral wire (N) is blue, and the insulation color for the ground wire (PE) is black. The outer sheath color of the cable is usually black, and it can also be specified by the user.
Product structure parameters

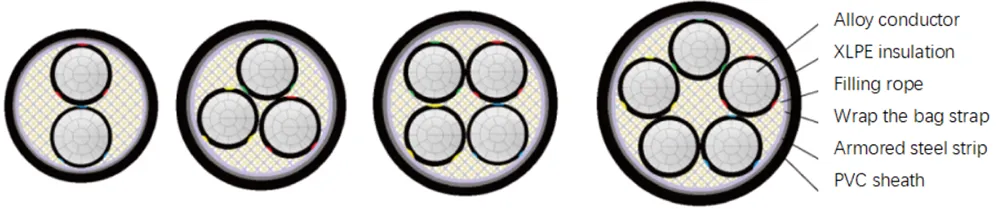

Type specification：YJLHV-0.6/1kV Low-voltage aluminum alloy power cable
| Nominal cross-section
mm2 |
Insulation thickness
mm |
2 cores | 3 cores | 3+1 cores | 4 cores | 3+2 cores | 4+1 cores | 5 cores | |||||||
| Outer diameter
mm |
Weight
kg/m |
Outer diameter
mm |
Weight
kg/m |
Outer diameter
mm |
Weight
kg/m |
Outer diameter
mm |
Weight
kg/m |
Outer diameter
mm |
Weight
kg/m |
Outer diameter
mm |
Weight
kg/m |
Outer diameter
mm |
Weight
kg/m |
||
| 10 | 0.7 | 16.2 | 0.37 | 17.0 | 0.42 | – | – | 18.3 | 0.48 | – | – | – | – | 19.7 | 0.56 |
| 16 | 0.7 | 18.7 | 0.48 | 19.7 | 0.55 | – | – | 21.4 | 0.64 | – | – | – | – | 23.1 | 0.75 |
| 25 | 0.9 | 21.9 | 0.64 | 23.1 | 0.74 | 24.3 | 0.81 | 25.2 | 0.88 | 25.7 | 0.91 | 21.9 | 0.76 | 27.4 | 1.03 |
| 35 | 0.9 | 23.8 | 0.76 | 25.2 | 0.89 | 26.0 | 0.95 | 27.5 | 1.07 | 27.2 | 1.04 | 24.0 | 0.92 | 30.2 | 1.27 |
| 50 | 1.0 | 26.4 | 0.95 | 28.0 | 1.12 | 29.5 | 1.23 | 30.9 | 1.37 | 31.3 | 1.37 | 27.4 | 1.22 | 33.9 | 1.64 |
| 70 | 1.1 | 30.2 | 1.22 | 32.2 | 1.46 | 33.5 | 1.59 | 35.6 | 1.79 | 35.6 | 1.78 | 32.9 | 1.94 | 40.3 | 2.55 |
| 95 | 1.1 | 34.2 | 1.53 | 37.9 | 2.23 | 39.3 | 2.42 | 41.7 | 2.71 | 41.6 | 2.69 | 37.8 | 2.48 | 45.8 | 3.22 |
| 120 | 1.2 | 39.3 | 2.26 | 41.5 | 2.65 | 43.5 | 2.93 | 45.8 | 3.22 | 46.3 | 3.30 | 43.2 | 3.15 | 51.7 | 4.01 |
| 150 | 1.4 | 42.5 | 2.64 | 45.4 | 3.15 | 46.9 | 3.40 | 51.5 | 4.01 | 50.5 | 3.87 | 46.2 | 3.64 | 56.4 | 4.79 |
| 185 | 1.6 | 47.5 | 3.18 | 52.1 | 3.96 | 53.8 | 4.28 | 57.5 | 4.84 | 56.8 | 4.75 | 51.9 | 4.43 | 63.3 | 5.81 |
| 240 | 1.7 | 53.5 | 3.99 | 57.0 | 4.77 | 59.1 | 5.19 | 63.1 | 5.88 | 62.4 | 5.77 | 57.3 | 5.44 | 69.6 | 7.09 |
| 300 | 1.8 | 59.4 | 4.80 | 63.4 | 5.76 | 65.6 | 6.26 | 70.3 | 7.12 | 69.1 | 6.96 | 64.0 | 6.62 | 77.7 | 8.63 |
| 400 | 2.0 | 66.8 | 6.00 | 71.5 | 7.28 | 74.0 | 7.90 | 79.3 | 9.02 | 77.9 | 8.75 | 73.7 | 9.17 | 88.9 | 11.85 |
| 500 | 2.2 | 73.6 | 7.21 | 78.7 | 8.77 | 82.5 | 9.64 | 88.8 | 11.83 | 88.2 | 11.62 | 82.5 | 11.16 | 98.0 | 14.29 |
| 630 | 2.4 | 80.5 | 8.66 | 87.4 | 11.48 | 90.7 | 12.51 | 97.0 | 14.23 | 96.0 | 13.93 | 89.4 | 13.44 | 107.2 | 17.22 |
Product Reference Specification: ASTM B800、GB/T 30552、IEC60228、GB/T 3956、IEC60502-1、GB/T 12706.1、GB/T 31840.1、IEC60332-3、GB/T 18380
Get Free Quote of TC90(YJLHV)
Application
- Construction field: Power distribution systems for residential and commercial buildings
- Electric power Engineering: Substations, transmission and distribution lines
- Industrial facilities: Factories, mines, petrochemicals, power transmission
- New energy: Cable connections for photovoltaic power stations and wind farms
- Municipal engineering: Infrastructure such as Bridges, tunnels and subways
